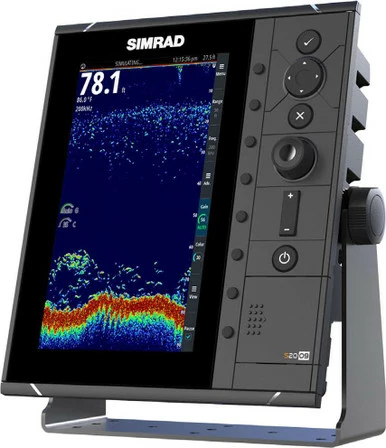

Simrad 000-12185-001 S2009 9 In. Fishfinder

The Simrad S2009 Fish Finder combines the Broadband Sounder module with CHIRP technology, 9 in. portrait display for maximum vertical detail, and intuitive keypad-driven operation. Robust yet compact with both bracket and flush-mount installation options, the S2009 was designed to meet the need for a dedicated fish finder display aboard coastal and offshore fishing vessels.

Simrad 000-12185-001 S2009 9 in. Fishfinder Includes:

• Dedicated fish-finder with integrated Broadband Sounder module and CHIRP technology
• High depth penetration and ping speed
• Vertical heave compensation
• 9 in. 480×800-pixel portrait LCD
• High-brightness display ideal for outside installation
• See clearly with White Line, White Marker, and Colour Erase features
• Simple operation with 8 direct-access menu keys
• Bracket and flush mounting options (bracket included)
• Full-sized SD card slot for logs and software updates
• Ethernet, NMEA0183 & NMEA2000 connectivity
• Integrated Single-Channel Broadband Sounder Module
• CHIRP Technology
• Vertical Heave Compensation
• Keypad Operation with Direct-Access Menu Keys
• Sonar Log Recording – ciBioBase and Insight Genesis Compatible
• Specifications:
  • Languages: 40 languages
  • Screen Brightness: 1200 cd/m2
  • Echosounder Max Depths: 3,000m / 10,000 ft. (transducer-dependent)
  • Echosounder Transducers: Standard Broadband and single-channel CHIRP Transducers
  • Echosounder Frequencies: CHIRP 28-38 kHz, 40-60 kHz, 85-145 kHz, 130-210kHz, Broadband 28kHz, 38kHz, 50kHz, 83kHz, 200kHz
  • Display Size: 9 in. portrait
  • Display Resolution: 480 x 800
  • Display Type: 9 in. LED-backlit Colour TFT LCD
  • Connectors: 1x NMEA0183, 1x NMEA2000, 1x Ethernet
  • Waterproof Standard/rating: IPx7
  • Product Width: 224.3mm / 8.83 in.
  • Product Depth: 82.3mm / 3.24 in.
  • Product Height: 260.1mm / 10.24 in.
  • Power Supply (Supply Voltage): 10.8-31.2 V DC
