Sale!

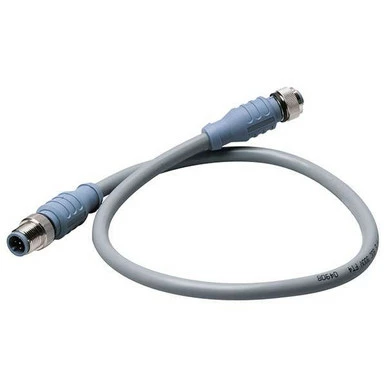

Maretron Mid Double-Ended Cordsets - Gray

Maretron Mid Double-Ended Cordsets – Gray

Original price was: $27.10.Current price is: $18.97.

SKU: MRE-0125 Categories: ,
  • Have the best deals
  • Shop with Ease
  • Quality at its Finest
  • Secure Payments, Secure Shopping

Maretron Mid Double-Ended Cordsets

Mechanical:

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59″

    Electrical

  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V

    Cable

  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2×16 (1.29mm) AWG, Data 2×20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 Levels)

    Environmental

  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

    Approvals

  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3
    • Model

    DM-DG1-DF-00.5, DM-DG1-DF-01.0, DM-DG1-DF-02.0, DM-DG1-DF-03.0, DM-DG1-DF-04.0, DM-DG1-DF-05.0, DM-DG1-DF-06.0, DM-DG1-DF-07.0

    Reviews

    There are no reviews yet.

    Be the first to review “Maretron Mid Double-Ended Cordsets – Gray”
