Maretron Mid Double-Ended Cordsets – Blue

Name: Fishing Sales 2023 - We'll track the Maretron Mid Double-Ended Cordsets - Blue cheap prices for you!
SKU: MRE-0136
Price: 18.97 USD
Availability: InStock

Original price was: $27.10.Current price is: $18.97.

Model

Clear

SKU: MRE-0136 Categories: Marine Electronics, Marine Equipment & Accessories

Have the best deals
Shop with Ease
Quality at its Finest
Secure Payments, Secure Shopping

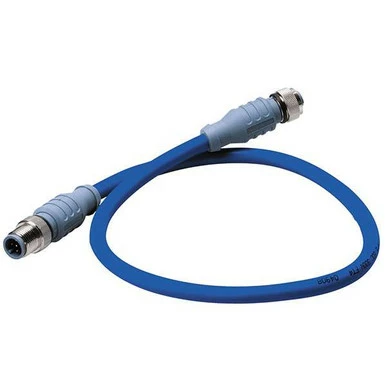

Maretron Mid Double-Ended Cordsets

Mechanical:

Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray

Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray

Contact Mat/Plating: Brass/Gold

Coupling Nut Mat/Plating: Brass/Nickel

Connector Outside Diameter: 0.59″

Electrical

Current Rating: 4.0 Amps

Voltage Rating: 250 V

Cable

Outer Jacket Mat/Color: PVC/Gray

Conductor Insulation Material: PE (data pair), PVC (power pair)

Number of Conductors: 2×16 (1.29mm) AWG, Data 2×20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire

Shielding (3 Levels)

Environmental

Protection Class: IEC IP68, NEMA 1,3,4,6P

Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

Approvals

(Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4

NMEA: NMEA 2000 Approved

IEC: IEC 61162-3

Model	DM-DG1-DF-08.0, DM-DG1-DF-09.0, DM-DG1-DF-10.0, DM-DB1-DF-00.5, DM-DB1-DF-01.0, DM-DB1-DF-02.0, DM-DB1-DF-03.0, DM-DB1-DF-04.0, DM-DB1-DF-05.0, DM-DB1-DF-06.0, DM-DB1-DF-08.0, DM-DB1-DF-09.0, DM-DB1-DF-10.0
