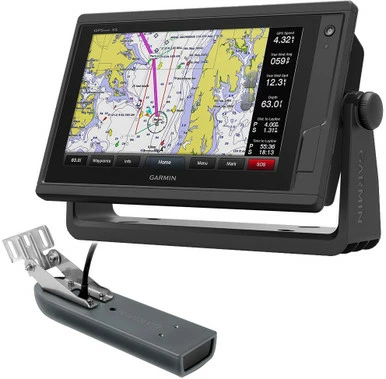

Garmin GPSMAP 942xs W/ CV23M Transom Mount Transducer

GPSMAP® 942xs w/CV23M Transom Mount Transducer

Experience an advanced navigation solution with this compact 9″ GPSMAP® 942xs touchscreen combo. Preloaded premium mapping features include both U.S. LakeVü HD maps and BlueChart® g2 HD charts. Enjoy wireless connectivity for Garmin mobile apps and VIRB® action camera integration. Garmin Marine Network support allows sharing of sonar, maps, user data, radar, IP cameras and Panoptix™ sonar among multiple units. Plus, there’s NMEA 2000® and NMEA 0183 support for connectivity, including autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors. These units also include integrated ANT® support for use with quatix® 3 marine watch, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls. Find fish with built-in Garmin CHIRP and CHIRP ClearVü sonar (transducer sold separately). Build your own map with Quickdraw Contours software and the Quickdraw Community on Garmin Connect™ online network.

Features:

• 9″ high-resolution intuitive touchscreen controls
• Preloaded with both U.S. LakeVü HD maps and BlueChart® g2 HD charts
• Built-in wireless capabilities for Garmin mobile apps and VIRB® action camera integration
• Supports Garmin Marine Network; allows sharing of sonar, maps, user data, radar, IP cameras and Panoptix™ sonar among multiple units
• NMEA 2000® and NMEA 0183 support for network connectivity, including autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors
• Supports Panoptix™ all-seeing sonar
• Includes Quickdraw Contours map drawing software
• Supports optional U.S. LakeVü HD Ultra maps and BlueChart® g2
• Vision® HD charts with Auto Guidance, satellite imagery, 3-D perspectives and more
• Built-in SailAssist features, including laylines, race features, set an drift, wind data and more
• Integrated ANT® support for use with quatix® 3 marine watch, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls

CV23M-TM Mid Band Traditional/ClearVü Transom Mount Transducer – 8-Pin

CV23M-TM transducer is perfect for coastal and offshore fishermen who want CHIRP traditional sonar and CHIRP ClearVü scanning sonar. This transom mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.

The 8-pin transducer features mid-band CHIRP traditional sonar (80-160 kHz) and has a power rating of 600 W. The CHIRP ClearVü (260/455 kHz) element has a power rating of 500 W. It also includes a built-in fast response temperature sensor.

For installation, follow the included instructions carefully to avoid damaging your boat.

Frequency: CHIRP Mid-band (80-160 kHz); ClearVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)

In The Box

• GPSMAP 942xs chartplotter
• CV-23M Transom Mount Transducer
• Power cable
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation

Connections

• Garmin Marine Network™ Ports: 1
• Transducer Ports: 1 (8 Pin)
• NMEA 2000® Port: 1
• NMEA 0183 Input Ports: 1 (Differential)
• NMEA 0183 Output Ports: 1 (Differential)
• Video Input Ports:  1 BNC
• Video Output Ports: No
• Wireless Connectivity: Yes
