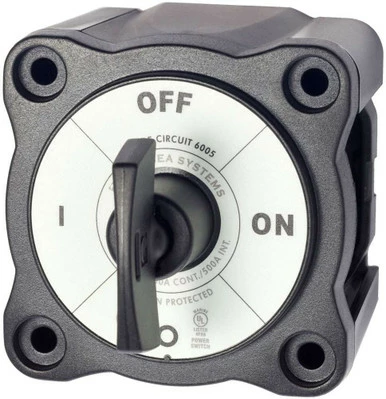

Blue Sea Systems Blue Sea 6005200 Battery Switch Single Circuit ON-OFF – Black

BLUE SEA 6005200 BATTERY SWITCH SINGLE CIRCUIT ON-OFF

m-Series Mini On-Off Battery Switch with Key – Black

Switches a single battery to a single load group Ignition protected-safe for installation aboard gasoline powered boats.

Case design allows surface, front panel, or rear panel mounting Isolating cover with snap-on sections protects rear contacts.

Switch Type: Single Circuit ON-OFF
Color:Black
Switch Positions:2
Battery Combine:No
Alternator Field Disconnect: No
Maximum Voltage:48V DC
Continuous Rating :300A
Intermittent Rating :500A (5 min)
Cranking Rating 10 sec: 1500A
Cranking Rating 1 min: 775A
Battery Inputs:1
Cable Clearance For 4/0 AWG Cables:1.12in (28.45 mm)
Cable Size to Meet Ratings:4/0 AWG (120mm²;)
Mounting Holes: Accept #10 Screw
Terminal Stud Size:3/8″-16 (M10)
Terminal Stud Torque:120 in-lb (13.56 Nm)
Weight:0.62lb (0.28/ kg)
