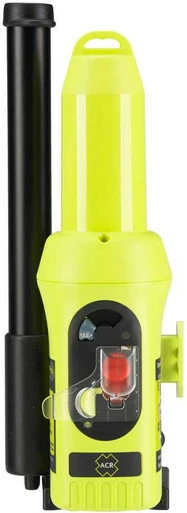

ACR Electronics ACR 2914 Pathfinder Pro SART Non-Hazmat Search & Rescue Transponder

The ACR 2914 Pathfinder Pro SART Non-Hazmat Search & Rescue Transponder complies with IMO SOLAS regulations. When interrogated by radar, the ACR Pathfinder Pro returns 12 intense blips back to the vessel’s radar screen, which significantly enhances search and rescue efforts. The superior lithium battery provides over 96 hours of standby operating life (waiting to be interrogated by radar) and 12 hours of active operating life (while interrogated by radar).

The compact Pathfinder Pro SART includes a sleek wall mount to keep it readily accessible in an emergency, yet out of the way when not needed. An attached telescopic pole conveniently connects to the bottom of the SART, providing maximum height and visibility out of a life craft. The SART can also be suspended inside the craft for hands free usage.

A SART (Search and Rescue Transponder) is mandatory for all commercial vessels that must conform to GMDSS, and any vessel carrying more than one life raft.

Carriage Requirements

• Any IMO SOLAS vessels on international voyages are required to carry a SART
• 300-500 Gross Register Tonnage (GRT) must carry a minimum of 1 SART
• Over 500 Gross Register Tonnage (GRT) must carry a minimum of 2 SARTs
• 1 SART for every four life rafts on Ro-Ro passenger vessels

ACR Pathfinder Pro SART Features:

• Enhances radar returns with 12 intense blips, with the first blip representing the SARTs location
• Transmits through 9.2-9.5 GHz band marine radar when interrogated by radar
• Collapsible pole and vessel mounting bracket
• Compact 8.94 x 2.56in (227 x 65mm) unit easily packs into life raft
• Waterproof to 10m (33ft)
• Non-Hazmat Lithium battery (5-year replacement life) operates for over 96 hours in standby mode plus an additional 12 operational hours
• Worldwide certifications; complies with FCC, IEC, IMO, and MED standards

ACR Pathfinder Pro SART Specifications:

• Battery: Lithium/Iron Disulfide (Li/FeS2) – Non Hazardous
• Operation: Break protective cover, slide and hold yellow switch to the left, slide the red switch into the down position
• Deployment: Manual
• Frequency: 9.2-9.5GHz
• Waterproof: >10 meters @ +20°;C
• Output Power (EIRP): >26 dBm eirp
• Temperature Range (Storage): -30°;C to +70°;C
• Temperature Range (Operating): -20°;C to +55°;C
• Operating Life Active: >12 Hours
• Operating Life Standby: >96 Hours
• Certification: FCC, MED, Industry Canada, and Chinese CCS type approval certificate. Tested to IMO and IEC Standards
• Included Accessories: Vessel mounting bracket
• Weight: 15.5 oz (440g)
• Size: 8.94 x 2.56 Inches (227 mm x 65 mm)
